The universal clamp design securely fits wheels ranging from 12" to 24" rims, while high-definition cameras provide precise, real-time alignment readings and diagnostic data, enhanced by patented imaging technology for accurate measurements.
- Tel: +91 94433 90156
WHEEL ALIGNERS
3D WHEEL ALIGNER
| Camber (F / R) | ±15° 00′ (±0° 02′) |
| Caster | ±28° 00′ (±00° 05′) |
| Kingpin Inclination | ±25° 00′ (±00° 05′) |
| Toe (F / R) | ±20° 00′ (±0° 02′) |
| Total Toe | ±40° 00′ (±00° 04′) |
| Toe Out on Turn | ±25° 00′ (±00° 05′) |
| Setback (F / R) | ±25 mm (±2 mm) |
| Thrust Angle | ±5° 00′ (±0° 02′) |
| Runout | ±10° 00′ (±0° 02′) |
| Included Angle | ±40° 00′ (±00° 05′) |
| Track Width Difference | ±300 mm (±5 mm) |
| Power Supply | 110-240V AC, 50~60 Hz |
| Wattage | 300W / 500W for Auto Boom |
| Operating Temperature | 0° - 50°C |

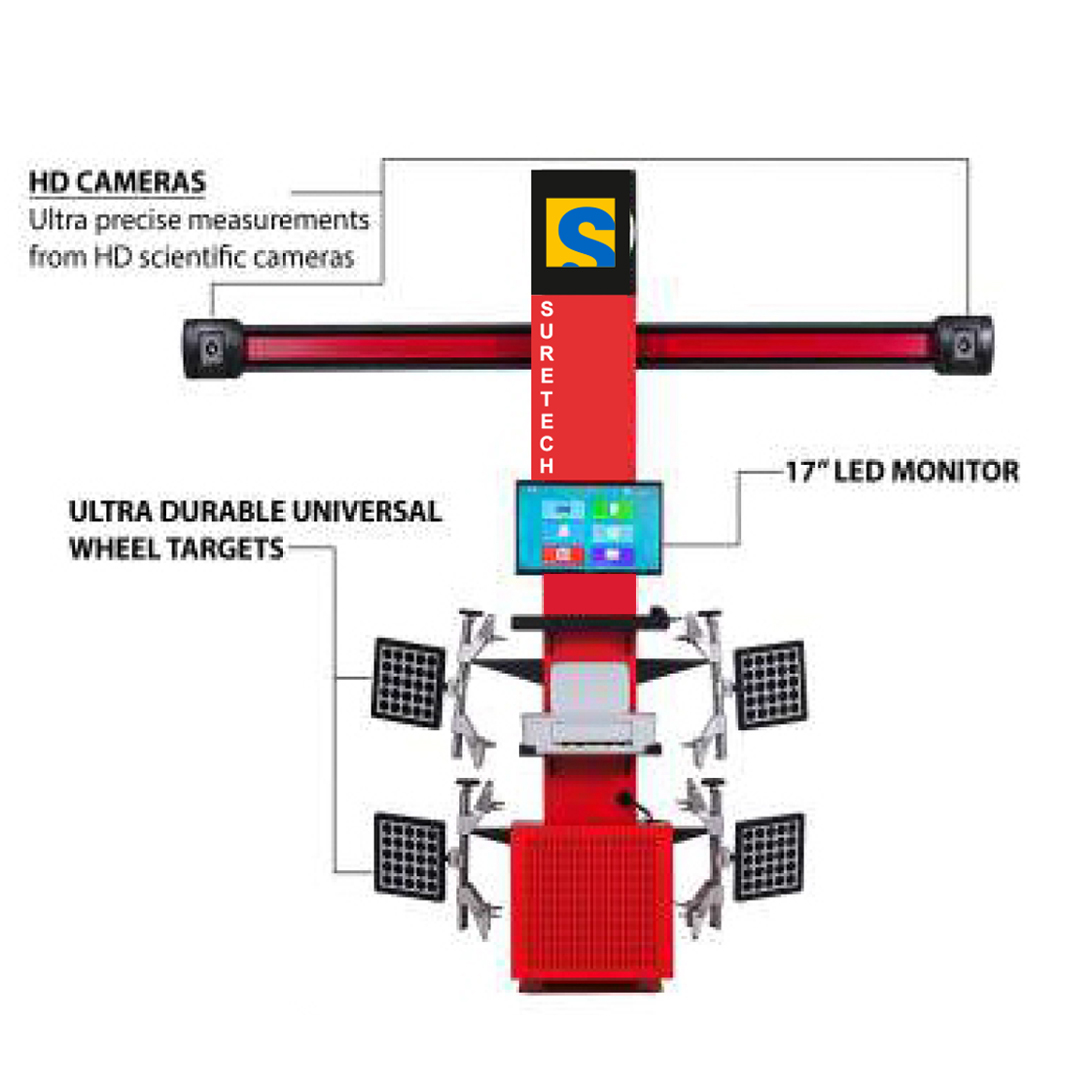

PROLINE 3D WHEEL ALIGNER
Universal Clamp Design
Engineered to fit any wheel between 12" - 2" rim diameter including alloys, steel rims and run flat tyres. The target itself is made from hard wearing plastic being corrosion resistant, with no electronics or glass ensuring the longevity of the equipment.
| Measurement | Range | Accuracy |
|---|---|---|
| Camber (F/R) | ± 15°00′ | ± 00°02' |
| Caster | ± 28°00′ | ±00°05' |
| Kingpin inclination | ± 25°00' | ±00°05' |
| Toe (F/R) | ±20°00' | ±00°02' |
| Total toe | ± 40°00′ | ±00°04' |
| Toe out on turn | ± 25° 00' | ±00°05' |
| Setback (F/R) | ±00°05' | + 2 mm |
| Thrust angle | ± 25° 00' | ±00°02' |
| Runout | ± 10° 00' | ±00°02' |
| Included angle | ± 40° 00' | ± 05° 00' |
| Track width difference | ± 300 mm | ± 5 mm |
